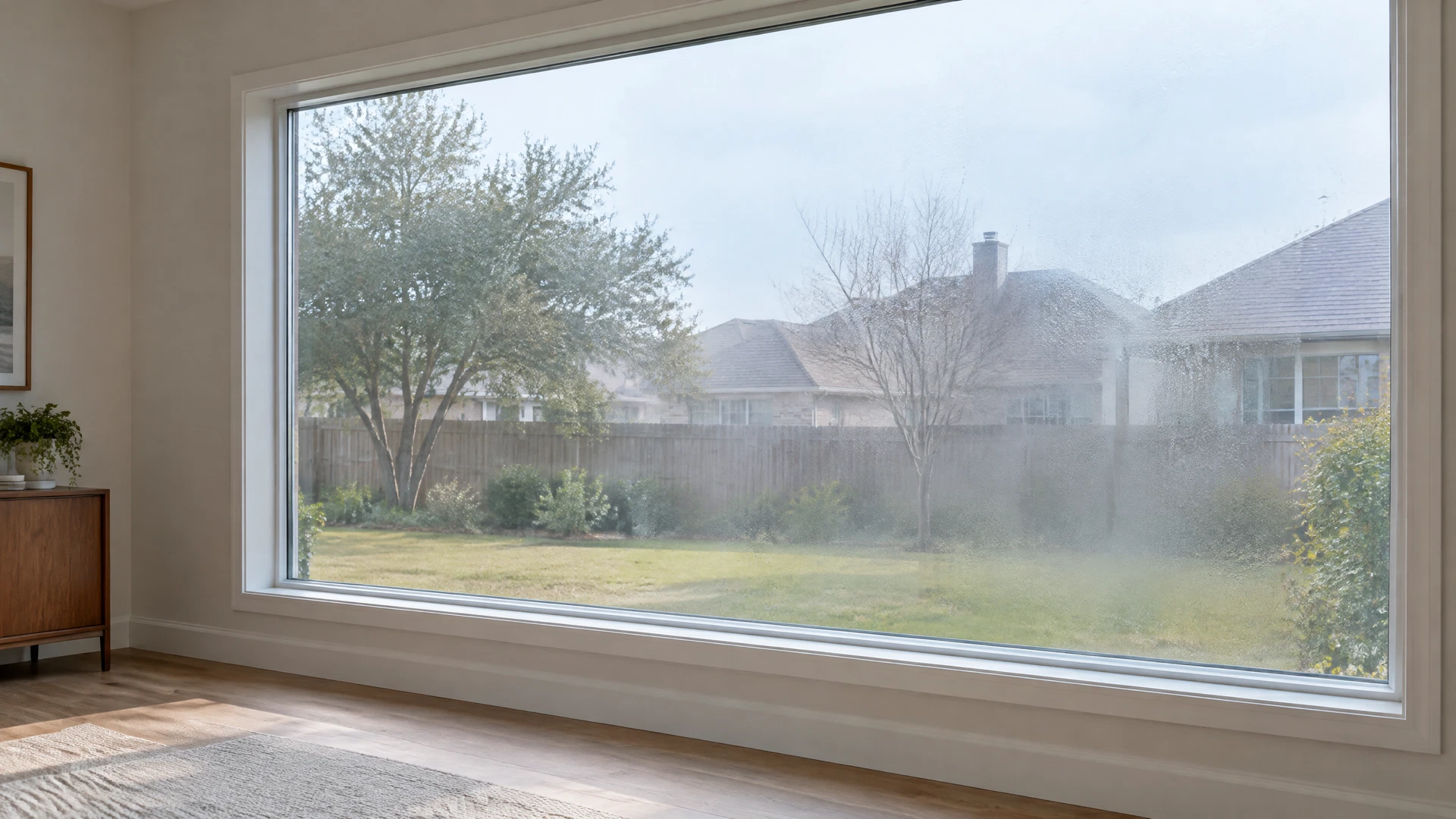

Large-format windows are a defining feature of many homes in Plano, providing expansive views and natural light. However, when the seal of an insulated glass unit (IGU) fails, the resulting fog is particularly noticeable on these larger surfaces. Replacing glass of this scale requires an assessment of the existing window system, planning for safe handling, and a clear understanding of the specifications required for oversized units. While a failed seal can be frustrating, glass-only replacement is often a viable option if the surrounding components remain in good condition. This guide focuses on the specific considerations for planning a successful replacement project for large-format glass units in Plano homes.
The Unique Challenges of Large-Format Foggy Glass
When dealing with oversized windows, the complexity of a foggy glass replacement increases due to the weight and surface area of the glass. A failed seal occurs when the desiccant inside the spacer bar becomes saturated, allowing moisture to condense between the two panes. In large-format units, the physical stress on the seals can be greater than in standard windows. Factors such as thermal expansion, wind loads, and the weight of the glass itself all place continuous pressure on the IGU seals. Replacing these units requires specialized equipment and a team trained in the safe handling of heavy glass. The thickness of the glass in large units is often greater than that found in standard windows to ensure structural stability.
Assessing the Glazing System and Frame Serviceability
Before proceeding, an assessment of the existing window frame, sash, hardware, and glazing system is essential. Glass-only insulated glass unit replacement can be considered only when the existing frame, sash, hardware, glazing system, and opening are serviceable. If the frame shows signs of warping, rot, or structural failure, a broader window assessment can be appropriate to determine if a full window replacement is necessary. In Plano, where temperature fluctuations are significant, window frames are subjected to varying levels of stress. A frame that has lost its structural integrity will not be able to properly support the weight of a new, large-format glass unit.
Evaluating Frame Integrity
For large-format windows, the frame must be perfectly square and level. Even slight shifts in the home's foundation can cause a frame to become out of square. If the opening is no longer true, the new glass unit may not fit properly, or it may experience uneven pressure that leads to seal failure.
Inspecting Glazing Components
The glazing bead is the strip that holds the glass unit in place. Over time, these beads can become brittle. During the assessment, it is important to verify that the beads can be removed and reinstalled without breaking.
Planning for Access and Safe Handling
The logistics of moving a large-format glass unit into place are critical. Unlike standard windows handled by one or two people, oversized panes may require a larger crew and specialized lifting equipment. Safe handling is paramount when dealing with glass that can weigh hundreds of pounds. The use of high-quality suction cups, glass dollies, and sometimes cranes or lifts may be necessary. Planning for these requirements ahead of time helps ensure that the installation day proceeds smoothly.
Site Access Requirements
Depending on the window design, the glass may need to be installed from the interior or the exterior. For second-story windows, exterior access might require scaffolding or specialized ladders.
Safety Protocols and Coordination
A successful installation relies on clear coordination among the service team. Each member must understand their role in the lifting and positioning process. The use of personal protective equipment, such as cut-resistant gloves and safety glasses, is mandatory.
Comparison: Standard vs. Large-Format Glass Planning
The following table highlights key differences in planning considerations between standard residential windows and large-format units.
| Planning Factor | Standard Window Units | Large-Format Glass Units |
|---|---|---|
| Handling Requirements | Typically 1-2 technicians | Often requires 3+ technicians |
| Specialized Equipment | Standard suction cups | Heavy-duty lifters or mechanical aids |
| Glass Thickness | Usually 1/8" or 3/16" | Often 1/4" or thicker for stability |
| Safety Glazing | Required in specific zones | Almost always required due to size |
| Access Planning | Minimal site preparation | Path-of-travel planning |
| Frame Stress | Moderate | High; requires rigorous frame check |
Developing Technical Specifications for Large Panes
When requesting a quote, the written specification should be detailed and precise. Because of the size, the glass will likely need to be tempered for safety, and the thickness must meet local requirements for wind loads. The specification should also include details on the spacer system, the type of gas fill, and any Low-E coatings applied to match existing windows or improve energy efficiency. Having a clear, written scope of work allows homeowners to compare options and ensures everyone is on the same page regarding the materials being used.
When to Consider a Full Window Assessment
While many foggy glass issues can be resolved by replacing the IGU, there are instances where the frame itself is the problem. If the window is difficult to operate, if there are visible gaps in the frame corners, or if there is evidence of water damage, a glass-only fix may not be sufficient. In these cases, a more comprehensive approach is needed to ensure the long-term performance and efficiency of the window system. By focusing on the specific needs of large-format windows, homeowners in Plano can ensure their views remain clear and their homes stay comfortable for years to come. Taking the time to plan the logistics and verify the specifications of the replacement glass is the most suitable way to achieve a lasting result for Plano window glass services and professional foggy glass replacement.
How do I know if my large window needs a full replacement or just new glass?
A full replacement is typically necessary if the window frame is rotted, warped, or structurally compromised. If the frame is in good condition, a glass-only replacement is often a cost-effective solution.
Is tempered glass required for all large-format window replacements?
Building codes often require tempered safety glass for windows that exceed a certain size or are located near doors, floors, or stairs. Tempered glass is stronger than standard glass and breaks into small, blunt pieces.
How long does the process of replacing a large glass unit usually take?
The installation takes a few hours, but the entire process can take several weeks. This is because large or custom-shaped IGUs are manufactured to order.
Can the new glass unit match the tint of my existing windows?
Yes, replacement glass units can be manufactured with various Low-E coatings and tints to match the appearance of your existing windows. It is important to discuss these aesthetic requirements during the specification phase.
